 See  MODULAR designs

RIP-STOP SHEET



TESTED  18.9 Degrees Celsius reduction in temperature



Reflective foil laminated ONE SIDE to a RIP-STOP base.

The RIP-STOP sheet is the premium sheet in our range and the most durable due to the RIP-STOP base.

All webbing is stitched either single or double to ensure maximum strength.

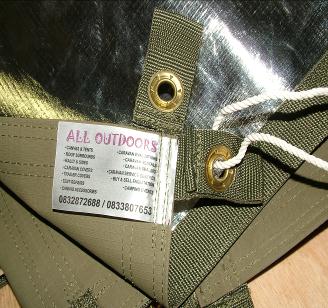

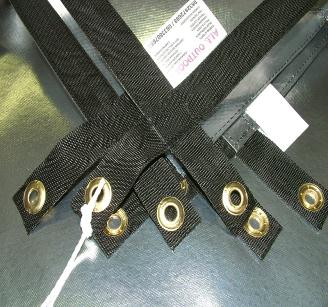

38-50mm Storm straps (webbing) sewn around edges.

All webbing is installed on top of the reflective sheet to ensure maximum strength, thereby limiting wind uplift related damage.

The webbing protrudes 100mm past all corners, enabling ample space for eyelet installation.



Approximate weight 350 GSM

WE AIM AT OFFERING CUSTOMERS A RANGE OF PRODUCTS THAT WILL

SUIT EVERYONE’S BUDGET, THUS WE HAVE DEVELOPED A COMPREHENSIVE

RANGE OF HEAT REFLECTIVE SHEETS.



RIP - STOP
SHEETTHERMO
CRYLIC
SHEET

See  PRODUCT CARE

THERMO-CRYLIC SHEET



TESTED  +- 5 Degrees Celsius reduction in temperature



Reflective Acrylic coating ONE SIDE to a RIP-STOP base.

The THERMO-CRYLIC sheet is the most durable reflective sheet in our range.

This does not have a foil laminate, but a reflective acrylic coating that cannot de-laminate in time as with laminated foils.

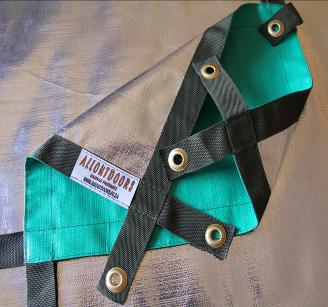

38-50mm Storm straps (webbing) sewn around edges.

The Acrylic coating is not as highly reflective as our foil ranges and this sheet does give lower thermal reduction figures, but it is more durable than the reflective foil ranges.

All webbing and storm strap designs are identical to the other ranges we manufacture.



Approximate weight 350 GSM

See   SIZE TABLES

COPYRIGHT 2011 -ALL OUTDOORS - ALL RIGHTS RESERVED                                                                                         Web design by:  ALL OUTDOORS

STANDARD SHEET



TESTED  18.9 Degrees Celsius reduction in temperature



Reflective foil laminated ONE SIDE to a woven HDPE base.

The woven component gives the product much of its bulk and strength.

HDPE is stronger than low-density polyethylene and less brittle than polypropylene and when woven into a fabric the higher strength is in both length and width.

This it is less susceptible to tearing under stress and will take much longer to ‘crack’

due to overuse (from being folded up etc).

HDPE also delivers the best results of traditional plastics in terms of UV resistance

and ‘weathering’



 - Approximate weight 195 GSM

STANDARD
SHEETCURRENTLY
NOT AVAILABLE
PRODUCT RE DEVELOPEDText Box: < BACK
